Application Examples and Customized Packaging Solutions

Below you can see some example setups and customized packaging solutions which have been designed by means of coating and soldering technology.


Packaging as a Service



PHOTONICPARTS_PACKAGINGSERVICE

At PHOTONICPARTS, we make advanced packaging simple and reliable.


Our customers send us their laser gain media or frequency conversion crystals – we take care of the rest.

How it works:

  • We design and tailor the right heatsink for your specific application
  • We manufacture the solution with our proven joining and assembly technology
  • We deliver a ready-to-use package – engineered for performance and reliability

With our expertise in thermal management, soldering technology, and robust assembly processes, we provide customized packaging solutions that ensure long-lasting stability and efficiency.

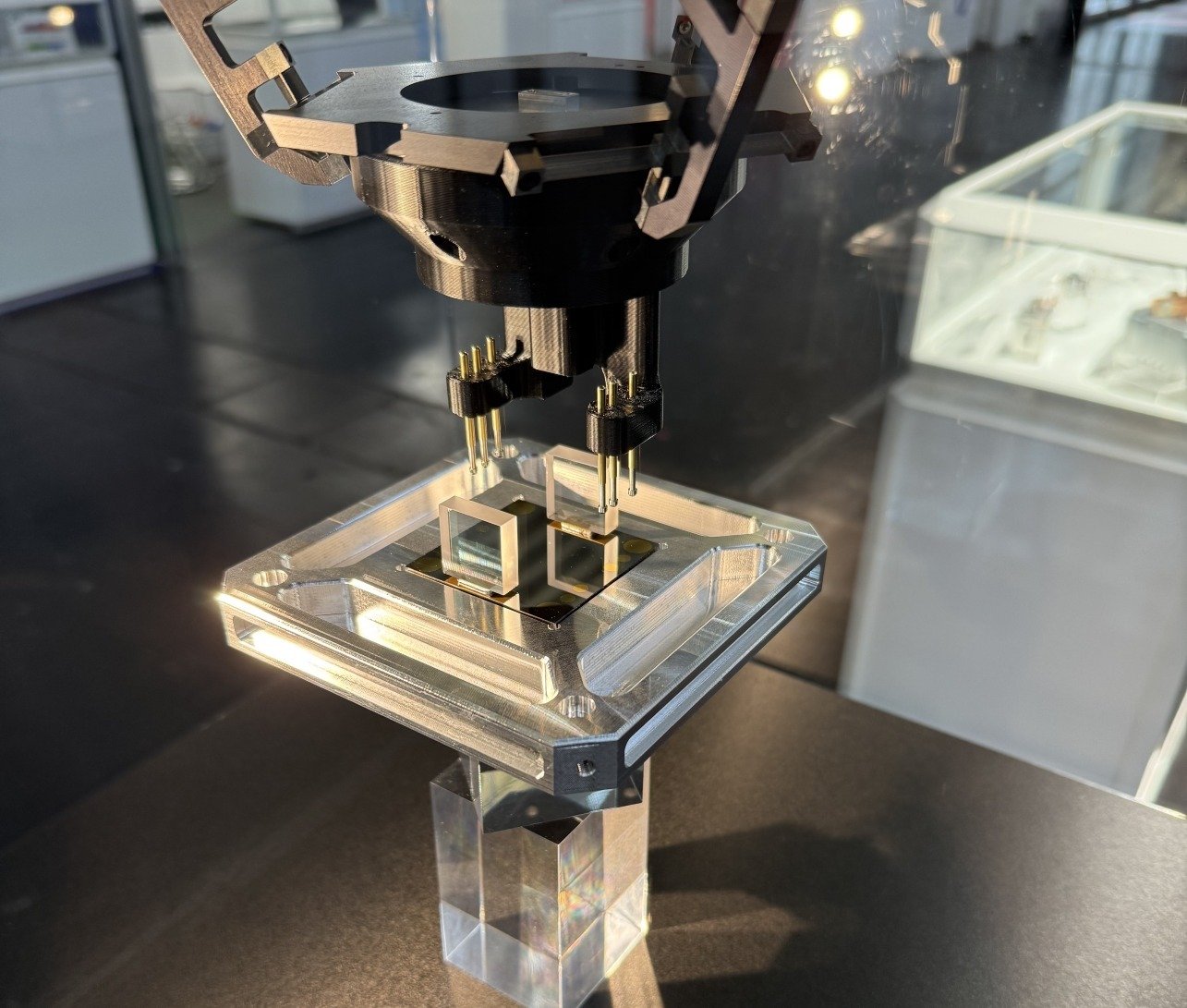

Active Solder Alignment

Optical components for machine-assisted assembly

Our active alignment technology enables us to achieve repeatable, consistent positioning of optical components in a molten solder interface. Local remelting using integrated heaters allows us to fix optical elements permanently and, stress-free fixation – without traditional mounts. The result: compact, robust, and precisely aligned optical systems.

  • Repeatedly adjustable in liquid solder
  • Fully integratable in machine-assisted automation setups
  • Completely glue-free, UV/vacuum/space-compatibility
  • Integrated heater and temperature sensor
IMG_2522
PHOTONICPARTS_Honeycomb-setup

Example setup with integrated conducting paths

A practical setup example to demonstrate the various application possibilities of coating and soldering technology.

We've employed a symmetrical sandwich design, consisting of two glass plates soldered onto a lightweight ceramic base with a honeycomb structure, ensuring a matching coefficient of thermal expansion (CTE). On the optical side of the baseplate, we've applied partial coatings featuring conductive paths and solder pads. Every optical component can be selectively controlled and adjusted to its ideal state successively by melting the solder.

Enabling the customer to build industrial proven optical setups

PHOTONICPARTS_Optical_Setup_Example

All of our products can be customized to suit your specific application needs. Leverage our expertise in constructing extremely durable, industry-proven components to significantly enhance the performance, sustainability, and size efficiency of your setups.




Customized packaging solutions

PHOTONICPARTS_Alexandrite

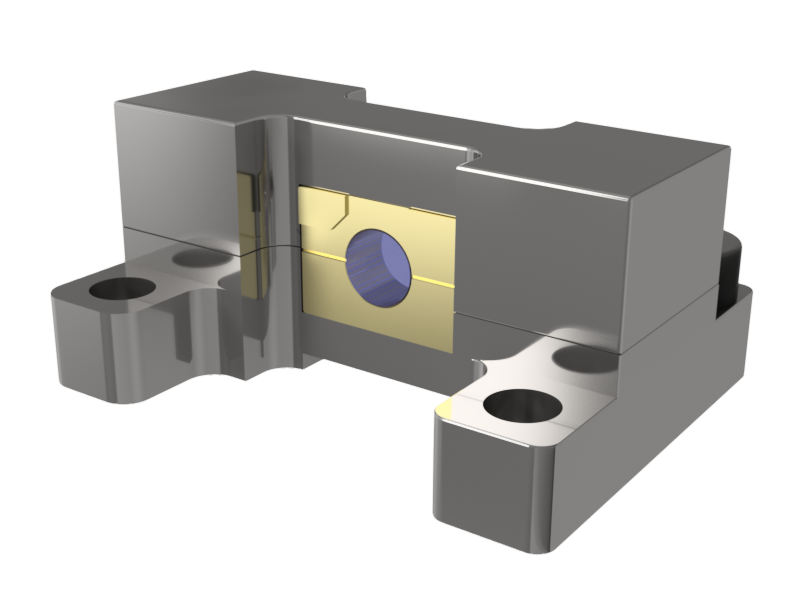

We are capable of designing and building customized packaging solutions based on our flux-free soldering technology, submount technique and unique layer stacking. We can solder nearly all material pairings such as glass, metals and ceramics.









Picture: Tailor-made packaging solution for a temperature controlled cubic alexandrite crystal mounted on a Peltier element




Multi wavelength selector with SHG and THG stages

PHOTONICPARTS_Wavelength_Selector

Wavelength selector engineered using PHOTONICPARTS components. Our frequency conversion modules have the capability to generate 2nd and 3rd harmonics.

This small setup expands the potential applications for your single-wavelength laser system.


Fiber Coupling Arrangement

PHOTONICPARTS_Fiber_Arrangement
An illustrative configuration demonstrating a thermally matched, fully soldered setup for fiber coupling.




Stable Mirror Mount

up 6.000 €

key features
  • Excellent performance for demanding industry and laboratory application

  • Excellent pointing stability over changing environmental conditions such as temperature, humidty or mechanical shocks and vibrations

  • Optic soldered on CTE-matched submount

  • Optical coating and substrate material according customers need

  • Absolutely free of glue / adhesives à no outgassing

  • Proven concept of solid state mirror mount

  • Excellent performance for demanding industry and laboratory application
  • Excellent pointing stability over changing environmental conditions such as temperature, humidty or mechanical shocks and vibrations
  • Optic soldered on CTE-matched submount
  • Optical coating and substrate material according customers need
  • Absolutely free of glue / adhesives à no outgassing
  • Proven concept of solid state mirror mount
  • Precise, independent axis adjustment via micrometer screws
  • Ultra compact design; minimal footprint (0.5” mirror on example picture)
  • Rear side open to measure/dump transmitted beam
  • Vacuum compatible
  • Metric or imperial screw-on points
  • Custom mount configuration available on request
  • Soldering of user provided optics possible
