wE eNGINEER AND BUILD

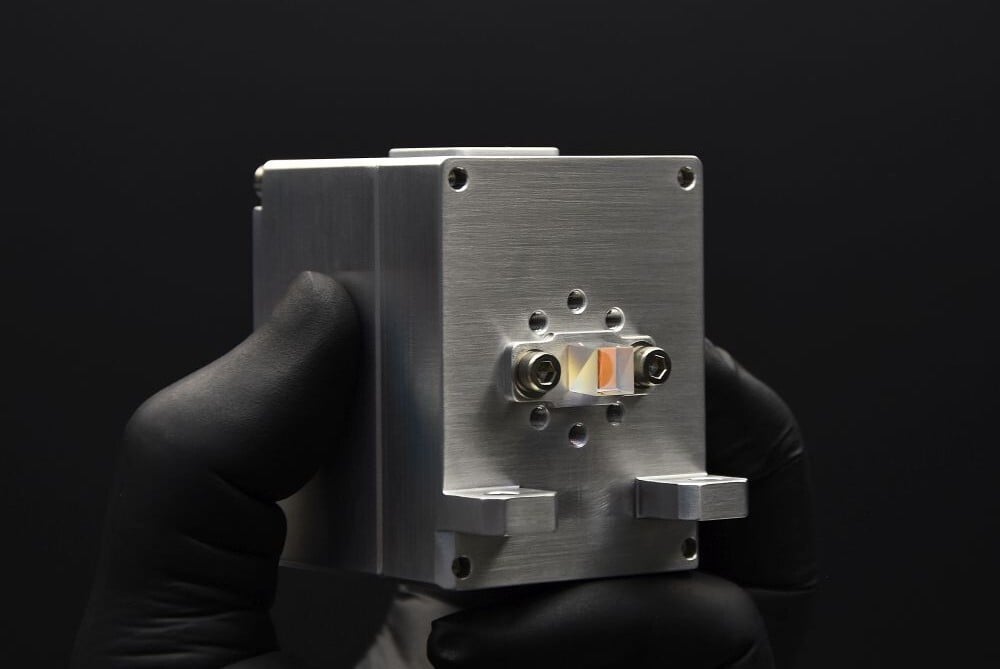

Our Faraday rotators and isolators are designed for laser
systems operating in the multi-100 W to kW power range

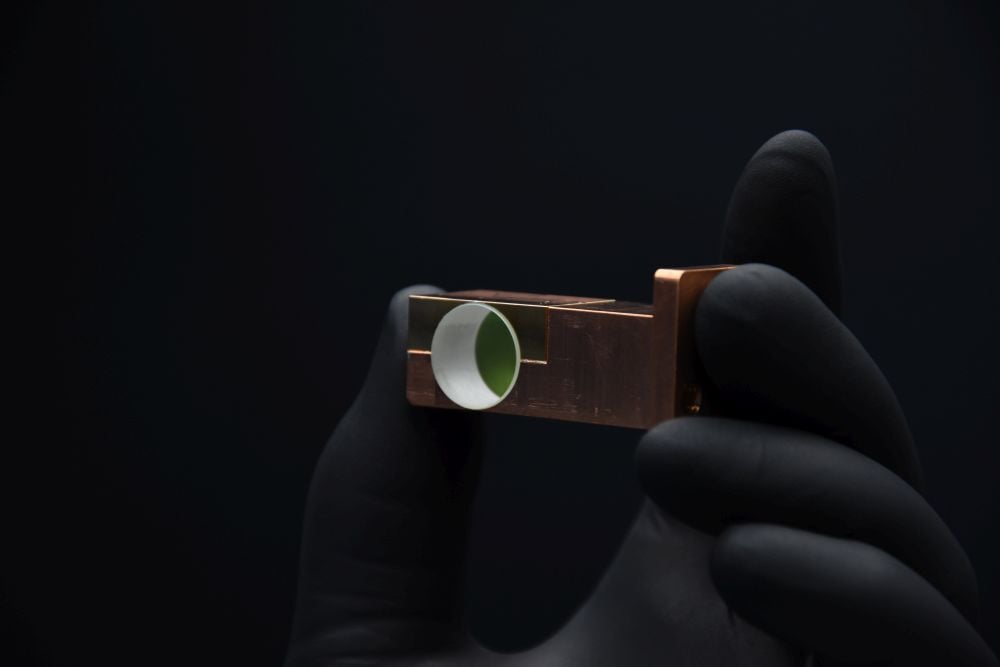

at 1030 nm and 1064 nm. A key feature is the direct soldered
connection of the crystal barrel surface (KTF or TGG) to
a water-cooled heatsink, realized using a flux-free soldering
process. This enables highly efficient thermal management
and minimal thermal shift, even at highest optical loads.
Thanks to our proprietary magnetic field design and the use
of soldering technology, we offer stable, high-performance
solutions for applications where standard components are
no longer sufficient.

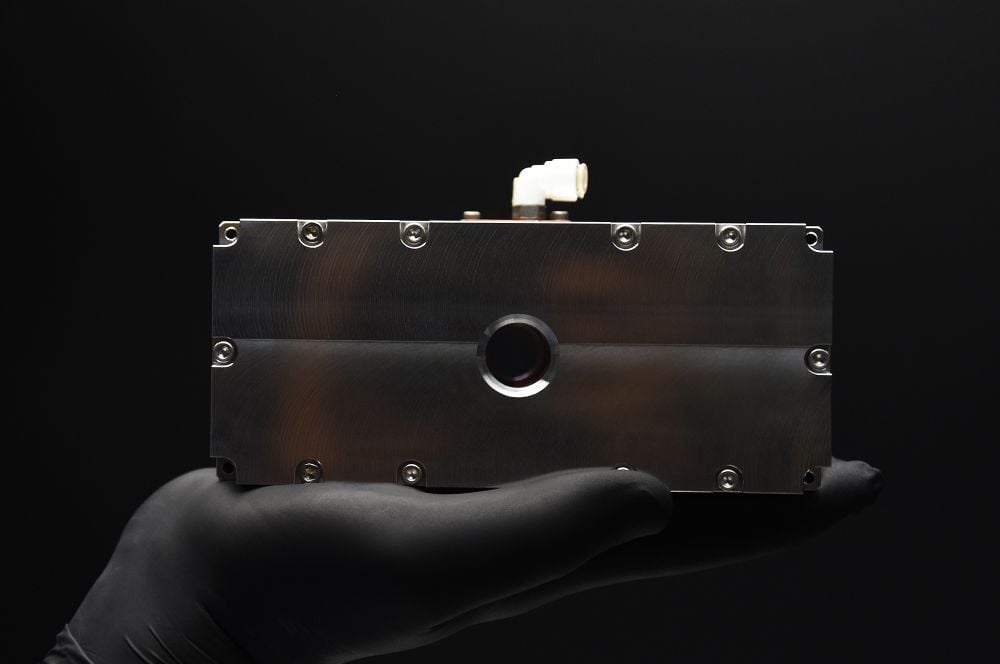

Power rating: Multi - 100W to kW
Water cooling
Aperture: Rod (dia 15mm / slab 15x25 mm²)
Crystal material: KTF
Wavelength: 1030 nm / 1064 nm
Transmission: > 95% Extinction ratio: > 30 dB
Damage threshold: 10J/cm² at 10 ns, 1J/cm² at 8 ps

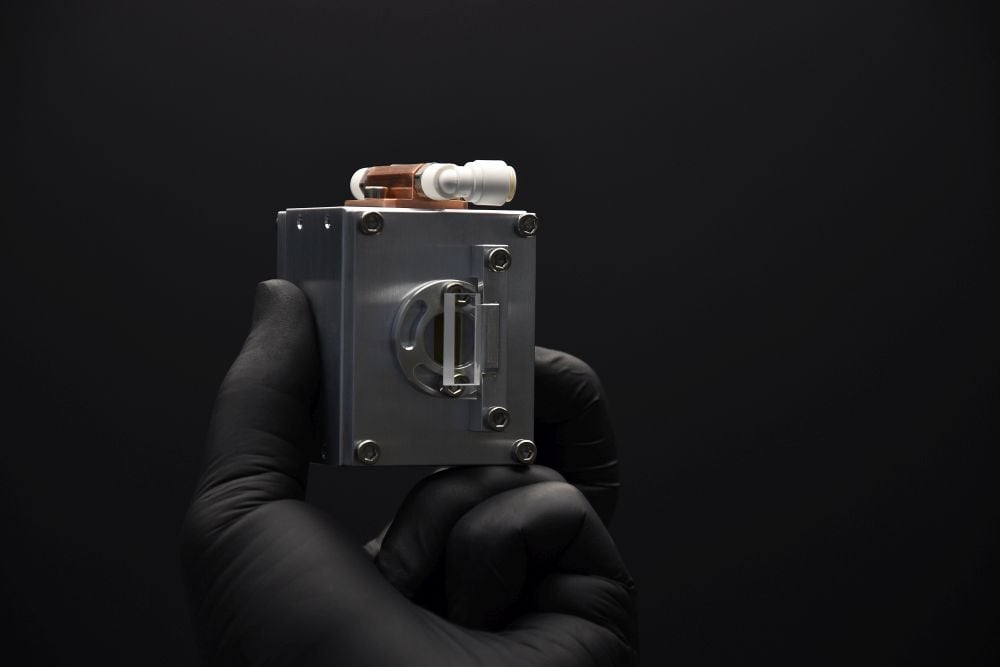

Power rating: 150W
Water cooling on request
Aperture: Rod, Diam 4 mm
Crystal material: TGG
Wavelength: 1030 nm / 1064 nm
Transmission: > 95% Extinction ratio: > 30 dB
Damage threshold: 10J/cm² at 10 ns, 1J/cm² at 8 ps
